Products

ColdBlock™ Technologies offers a suite of products to suit your sample digestion needs. Our units are built with the modern laboratory setting in mind. The modular nature of the 6-, 12- and 30-channel units means that you can customize your sample digestion process depending on the throughput you require.

CB6L: The original ColdBlock digester

The 6-channel ColdBlock™ Digestor was the first model ColdBlock™ Technologies developed. It can be used for a variety of applications with sample sizes ranging from 0.2 grams* up to 30 grams.** Rapid digestions can be run with high accuracy and precision. This model is ideal for academic and small sample run applications. Multiple 6-channel units can be placed in series to create up to an 18-channel workstation that can be augmented with an automated acid dispenser.

6-Channel Unit

Product Details

  1. Lower chamber. The lower chamber houses the shortwave IR lamps that directly heat the sample particles.
  2. Upper chamber. The upper chamber is where condensation occurs, helping augment sample recoveries.
  3. 6 Channels capable of running small (up to 2 grams)* and large (up to 30-50 grams)** samples in 250 mL tubes.
  4. Constructed of sturdy, anodized aluminum with the rigors of the laboratory environment in mind.

Additional Product Details

  1. CSA inspected electrical components.
  2. Controller allows the operator to create programs specific to unique applications and needs.
  3. Reduction/elimination of the requirement for harmful reagents, such as hydrofluoric and perchloric acid, and lead for mining applications.
  4. Fume hood or comparable ventilation system.

Technical Specifications/Requirements

  1. Single phase 240V/30A/60Hz electrical supply..
  2. Dimensions: 40cm height/ 35cm width/ 36 cm length.
  3. Chiller with cooling capacity 300W@20°C, pump capacity/flow rate 15 L/min, minimum filling (reservoir) volume 3L, the operational range of 20 to -5 °C and connection a 3/8th barb.
  4. Fume hood or comparable ventilation system.
* 0.2-2 grams validated in-house. Lower sample size possible depending on analytical equipment ** 5-30 grams validated in-house. Higher sample sizes are possible.

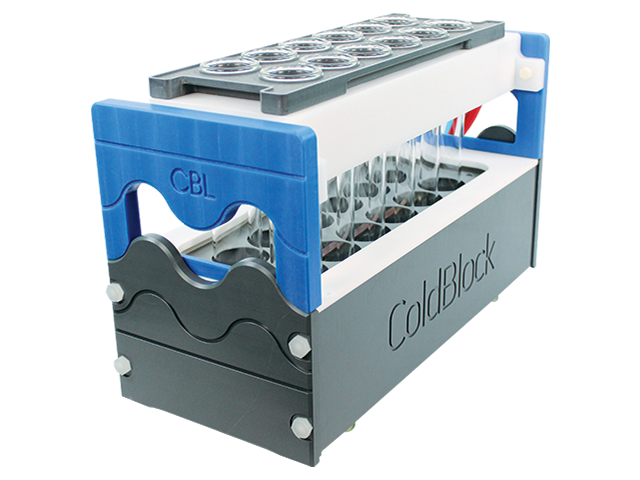

CB12L: The new 12 channel large and small sample digester

The 12-channel ColdBlock™ Digester can be used for a variety of applications, with sample sizes ranging from 0.2 grams* up to 30 grams**. Rapid digestions can be run with high accuracy and precision. Multiple 12-channel units can be placed in series to provide a larger footprint.

12-Channel unit

Product Detail

  1. Lower chamber. The lower chamber houses the shortwave IR lamps that directly heat the sample particles.
  2. Upper chamber. The upper chamber is where condensation occurs, helping augment sample recoveries.
  3. 12 Channels capable of running small (up to 2 grams)* and large (up to 30-50 grams)** samples in 250 mL tubes.
  4. Test tube rack. A plastic test tube rack simplifies sample preparation and the loading/unloading of the tubes in the channels.
  5. Constructed of sturdy, anodized aluminum with the rigors of the laboratory environment in mind.

Additional Product Details

  1. CSA inspected electrical components.
  2. Modular design allows for an expanded footprint and throughput.
  3. Controller allows the operator to create programs specific to unique applications and needs.
  4. CSA inspected electrical components.
  5. Reduction/elimination of the requirement for harmful reagents, such as hydrofluoric and perchloric acid, and lead for mining applications.

Technical Specifications/Requirements

  1. Single phase 240V/30A/60Hz electrical supply.
  2. Dimensions: 32.5cm height / 25.2cm width / 61cm length.
  3. Chiller with cooling capacity 300W@20°C, pump capacity/flow rate 15 L/min, minimum filling (reservoir) volume 3L, operational range of 20 to -5 °C and connection a 3/8th barb.
  4. Fume hood or comparable ventilation system.
* 0.2-2 grams validated in-house. Lower sample size possible depending on analytical equipment ** 5-30 grams validated in-house. Higher sample sizes are possible.

CB30S: The 30 channel small sample digester – COMING SOON – Taking Orders Now!

The 30-channel ColdBlock™ Digestor is the unit of choice for applications with small sample sizes (0.2-2 grams) with specially designed 30 mL test tubes specific to this system. Rapid digestions can be run with high accuracy and precision. Multiple 30-channel units can be placed in series to provide a larger footprint.

30-Channel unit

Product Details

  1. Lower chamber. The lower chamber houses the shortwave IR lamps that directly heat the sample particles.
  2. Upper chamber. The upper chamber is where condensation occurs, helping augment sample recoveries.
  3. The 30-channel ColdBlock Digestor is for small sample sizes (0.2-2 grams).
  4. Solid Build. Constructed of sturdy, anodized aluminum with the rigors of the laboratory environment in mind.

Additional Product Details

  1. Small (0.2-2 grams) and sample sizes can be run in the 30-channel digester.
  2. * 0.2-2 grams validated in-house. Lower sample size possible depending on analytical equipment.
  3. Reduction/elimination of the requirement for harmful reagents, such as hydrofluoric and perchloric acid, and lead for mining applications.
  4. Modular design allows for an expanded footprint and throughput.
  5. CSA inspected electrical components.
  6. Controller allows the operator to create programs specific to unique applications and needs.

Technical Specifications/Requirements

  1. Single phase 240V/30A/60Hz electrical supply.
  2. Dimensions: 30cm height / 47.5cm width / 38.8cm length
  3. Chiller with cooling capacity 300W@20°C, pump capacity/flow rate 15 L/min, minimum filling (reservoir) volume 3L, operational range of 20 to -5 °C and connection a 3/8th barb.
  4. Fume hood or comparable ventilation system.
COMING SOON: ColdBlock™ Technologies is constantly innovating and evolving our product lines to address industry needs. Check back to see what we have been working on.
